Here’s some pictures for placing the standoffs, holes for the upper platform mount, and VESC mounting holes.

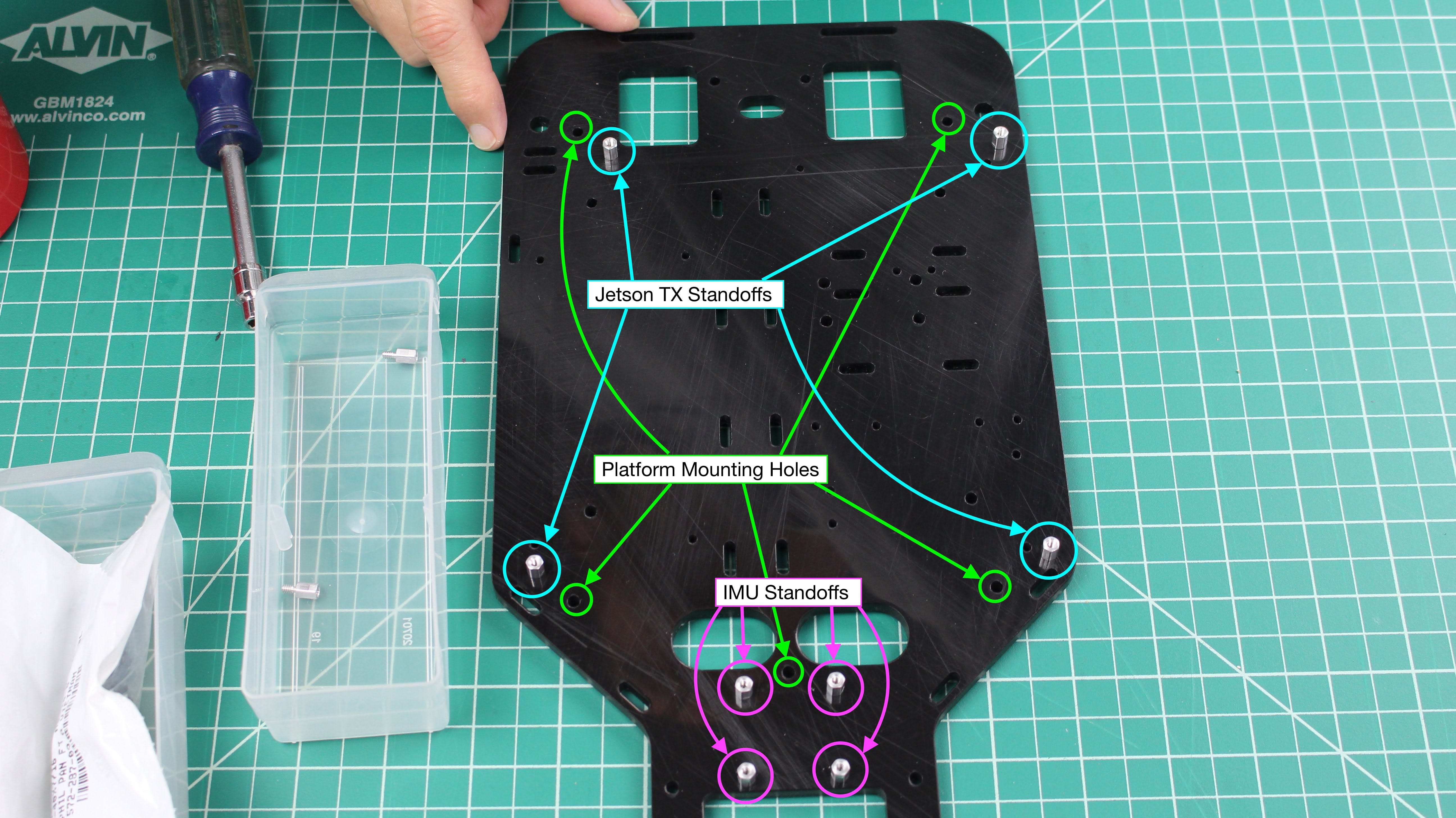

Standoff Placement — Standoff Placement for IMU and Jetson TX Dev Kits. Green is the upper platform standoffs mounting holes.

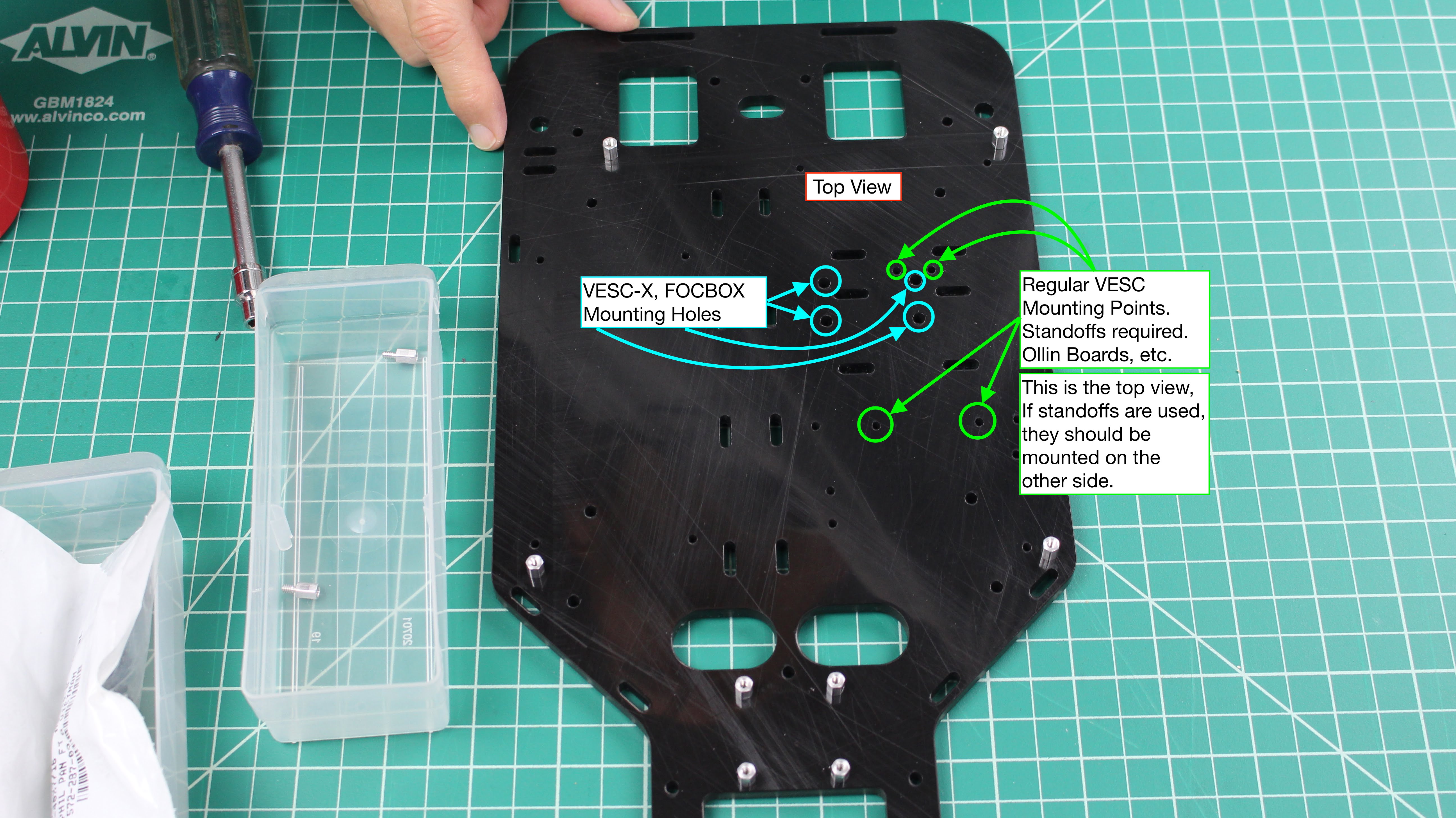

ESC Mount Points — Mounting Points for the VESC ESC. Blue is for FOCBOX/VESC-X, Green is for other VESC 4.12 hardware

The standoffs are 4-40 1/4″ Long 3/16 HEX M/F Aluminum.
